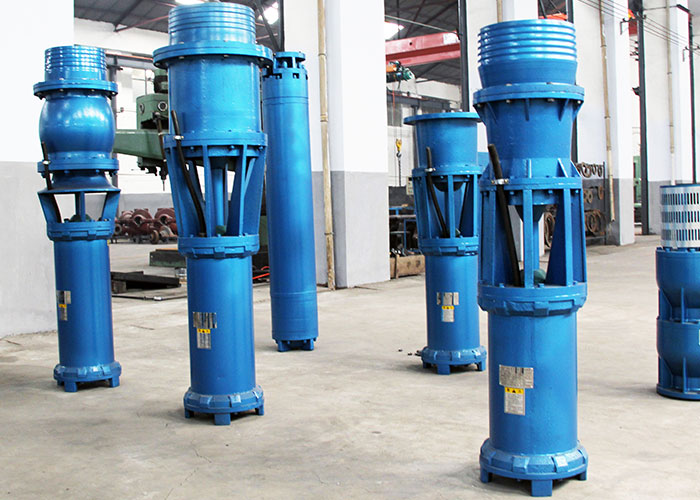

Vertical / Horizontal Axial Flow Water Pump 25kw Large Capacity Cast Iron Material

Brand Name : APK

Model Number : QSH

Certification : ISO; CE;BV;TUV; CCC; SGS; SASO

Place of Origin : Henan, China

MOQ : 1 piece

Price : Please feel free to contact us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 8652 pieces per month

Delivery Time : 2-3 working days after payment confirm

Packaging Details : Submersible axial flow pump with wooden package or 20'inch container

Motor power : 25kw axial flow pump

Capacity : 1200m3/h

Head : 6m

Volatge : 380v

Material : Cast iron

Install : Vertical Horizontal Tilting

Contact Now

Cast iron 25kw 1200m3/h 6m axial flow water pump, APK pump factory are in stock.

Axial flow water pump is one of our main submersible water pumps, mainly include axial flow water pump, mixed flow water pump.

Overview:

  • Capacity: 250-40000m3/h
  • Head: 2-20m
  • Motor power: 7.5-630kw
  • Voltage: 380v/660v/3kv/6kv/10kv
  • Impeller diameter: φ300-φ1400mm
  • Outlet diameter: φ150-φ1600mm

Vertical / Horizontal Axial Flow Water Pump 25kw Large Capacity Cast Iron Material

Vertical / Horizontal Axial Flow Water Pump 25kw Large Capacity Cast Iron Material

Vertical / Horizontal Axial Flow Water Pump 25kw Large Capacity Cast Iron Material

Features:

  • Installation methods: horizontal, vertical, tilting
  • Big flow, non-clogging, fluids flowing easily
  • Pump and motor share the same shaft, inproving rotor concentricity, less damage to shaft when pump working
  • The impeller angle is adjustable, highly improve the flow adjusted range
  • The motor is sealed three times, ensuring that there is no water leakage

Parameters:

Cpacity Range Head Range Shaft Power Motor Power Impeller Diameter
m3/h l/s m kw kw mm

677

833

905

187.9

231.3

251.3

7.67

4.97

3.58

19.6

15.6

13.0

 22 300

774

974

1103

215.0

270.4

306.3

8.98

6.50

3.80

27.7

22.0

16.7

 30 300

1185

1325

1449

329.2

367.9

402.5

8.03

6.50

5.11

34.0

30.0

26.8

 37 300

451

555

603

126.1

154.2

167.5

3.41

2.21

1.59

6.27

4.74

3.97

 7.5 300

516

649

735

143.3

180.3

204.2

3.99

2.89

1.69

8.11

6.58

4.68

 11 300

790

883

966

219.4

245.3

268.3

3.57

2.89

2.27

10.40

8.96

8.03

 15 300

2546.3

3312.0

3864.2

707.3

920.2

1073.4

4.94

2.95

1.28

47.56

32.44

18.70

 55 550

3048.8

3888.0

4545.4

846.9

1080.0

1262.6

5.07

3.10

1.49

58.44

39.28

25.61

 75 550

If these axial flow pump do not meet your requirements, please feel free to contact us. We will choose one suitable pump model for you.
