100m3/h 40m 30hp Sewage Pumps SS316 Drainage Dewatering Water Submersible Pump
Drainage submersible pump overview:
The submersible dirty water pump (hereinafter referred to as the electric pump) consists of three parts: motor, pump and seal.The motor is located at the upper part of the electric pump, which is a three-phase asynchronous motor. The alloy double-end mechanical seal is used between the pump and the motor.This model has features such as energy-saving, anti-winding, non-clogging, automatic installation and automatic control.
Where does the drainage submersible pump install?
Main use: widely used in industry, agriculture, mining, civil construction, municipal environmental protection and other places, it is the ideal equipment for pumping mud, mortar, domestic wastewater, sewage feces and urine, and containing short fiber, paper, sand and other solid particles and rural drainage irrigation river pond silt.
Drainage submersible pump models:
| Outlet diameter | Model | Flow | Head | Power |
| mm | WQ type | m3/h | m | kw | hp |
| 50 | 50WQ10-15-1.5 | 10 | 15 | 1.5 | 2 |
| 50 | 50WQ15-25-3 | 15 | 25 | 3 | 4 |
| 65 | 65WQ25-10-2.2 | 25 | 10 | 2.2 | 3 |
| 65 | 65WQ30-30-5.5 | 30 | 30 | 5.5 | 7 |
| 80 | 80WQ50-10-3 | 50 | 10 | 3 | 4 |
| 80 | 80WQ45-22-7.5 | 45 | 22 | 7.5 | 10 |
| 100 | 100WQ60-10-4 | 60 | 10 | 4 | 5 |
| 100 | 100WQ65-15-5.5 | 65 | 15 | 5.5 | 7 |
| 100 | 100WQ100-15-7.5 | 100 | 15 | 7.5 | 10 |
| 150 | 150WQ145-9-7.5 | 145 | 9 | 7.5 | 10 |
| 100 | 100WQ100-25-11 | 100 | 25 | 11 | 15 |
| 150 | 150WQ130-15-11 | 130 | 15 | 11 | 15 |
| 200 | 200WQ300-7-11 | 300 | 7 | 11 | 15 |
| 100 | 100WQ100-30-15 | 100 | 30 | 15 | 20 |
| 150 | 150WQ100-30-15 | 100 | 30 | 15 | 20 |
| 200 | 200WQ220-12-15 | 220 | 12 | 15 | 20 |
| 100 | 100WQ100-35-18.5 | 100 | 35 | 18.5 | 25 |
| 150 | 150WQ180-20-18.5 | 180 | 20 | 18.5 | 25 |
| 200 | 200WQ250-15-18.5 | 250 | 15 | 18.5 | 25 |
| 250 | 250WQ400-7-18.5 | 400 | 7 | 18.5 | 25 |
| 100 | 100WQ100-40-22 | 100 | 40 | 22 | 30 |
| 150 | 150WQ180-25-22 | 180 | 25 | 22 | 30 |
| 200 | 200WQ300-15-22 | 300 | 15 | 22 | 30 |
| 250 | 250WQ450-7-22 | 450 | 7 | 22 | 30 |
| 150 | 150WQ160-45-30 | 160 | 45 | 30 | 40 |
| 200 | 200WQ400-13-30 | 400 | 13 | 30 | 40 |
| 250 | 250WQ600-9-30 | 600 | 9 | 30 | 40 |
| 300 | 300WQ850-7-30 | 850 | 7 | 30 | 40 |
| 150 | 150WQ180-45-45 | 180 | 45 | 45 | 60 |
| 200 | 200WQ400-25-45 | 400 | 25 | 45 | 60 |
| 250 | 250WQ600-20-55 | 600 | 20 | 55 | 75 |
| 350 | 350WQ1300-12-75 | 1300 | 12 | 75 | 100 |
Drainage water submersible sewage pump with explosion proof electric control box image:
Why do we choose a submersible drainage pump for pumping dirty water?
1. The impeller adopts particular large channel structure, so the drain capacity has been improved greatly, it can effectively pass the solid grain whose diameter is about 50% of the pump caliber.
2. To improve the application safety this pump can be fixed with various protective devices according to the consumer's requirements, including: stator winding temperature-rise protection, bearing temperature-rising protection, oil chamber water-leakage protection etc devices.
3. It adopts inner self-flow circulation system. The motor is cooled by liquid, so it is safer o use. At the same time, the electric pump can be installed in dry and fixed form by this structure.
Submersible water pump factory showing:
APK is a professional ODM OEM electric sewage submersible pump manufacturer in China since 1996, got CE, ABS and ISO. Whether you are a trading company, distributor, end users, project planning or for a tender, we have professional sale team and technical team to service.
Product Tags:
|
|

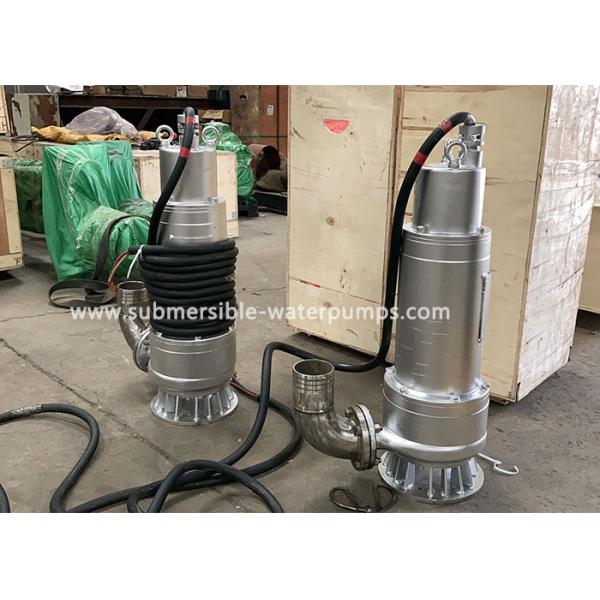

100m3/H SS316 Drainage Dewatering Water Submersible Pump Images
|
